1200 mm

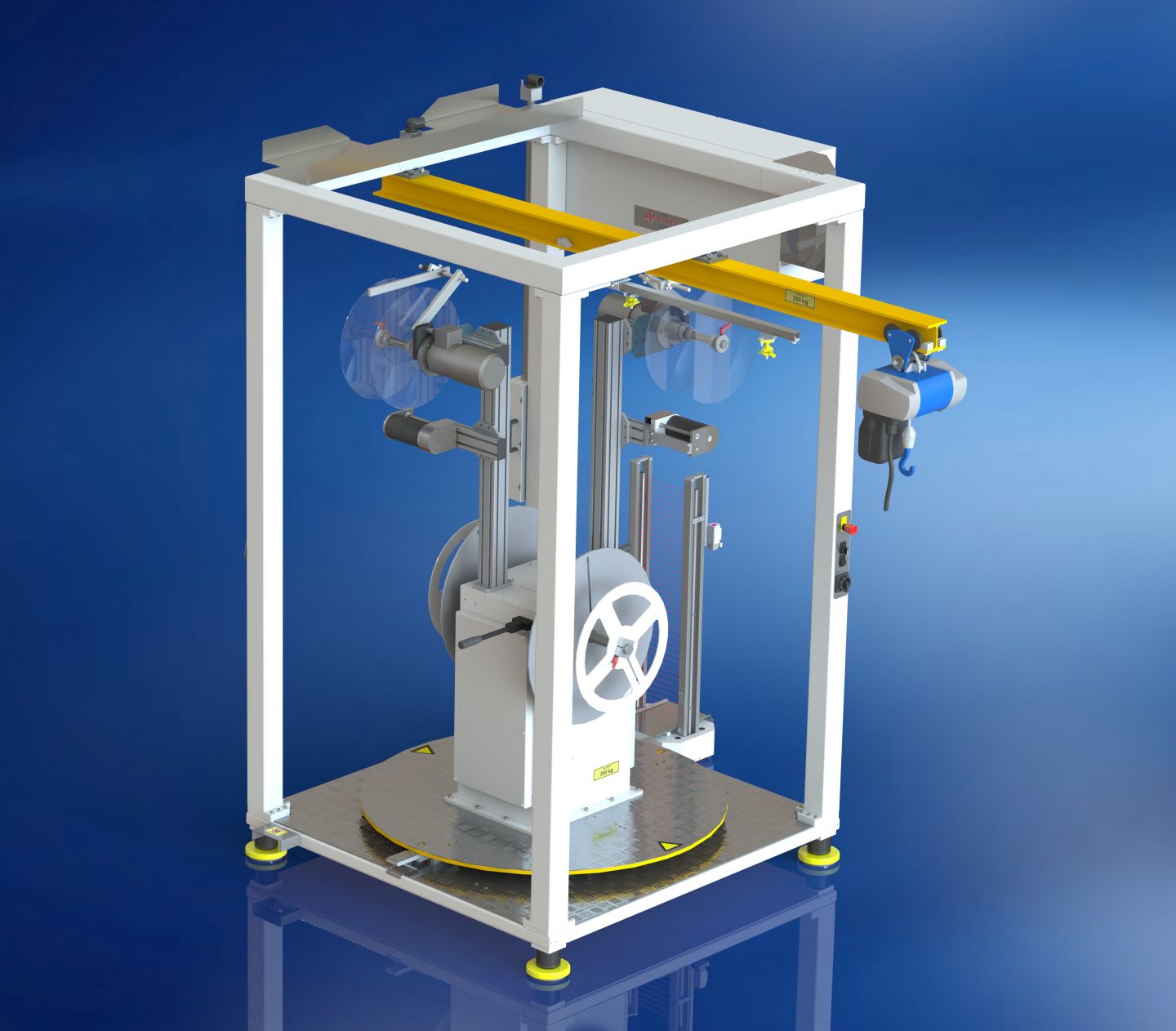

Product features
- For unwinding/rewinding of/on spools/coils, wound strips
- Electrical crane loading, mechanical/electrical displacement in x-axis
- Spool change by swivelling the winding axis through 180 degrees
- With paper pick-up
- Electromagnetic paper brake / rotating field magnet
- Contactless slack control via infrared / ultrasound / opto-sensor with tape tension
Technical specification
SPOOL OUTER DIAMETER max.
BOBBIN WEIGHT MAX. PER AXLE
500 KG
COIL WEIGHT MAX. PER AXLE
500 KG
Belt width max.
200 mm
Speed max.
25 Meter per Min
PAPER SPOOL OUTER DIAMETER MAX
600 mm
OPTIONS:
- Rewinding of the intermediate paper layer
- Mechanically adjustable hysteresis paper brake
- Multi-beam light barrier with mechanical tape tension switch
- Control designed as a touch panel
- Coil centre adjustment for holding coils / bevel gear adjustment / parallelogram
- Pneumatic pressure arm
- Pneumatic dancer control
- OPC-UA interface (Transmission Control Protocol)
- Impact protection wall right/left
- Protective housing with Save Limited Speed
