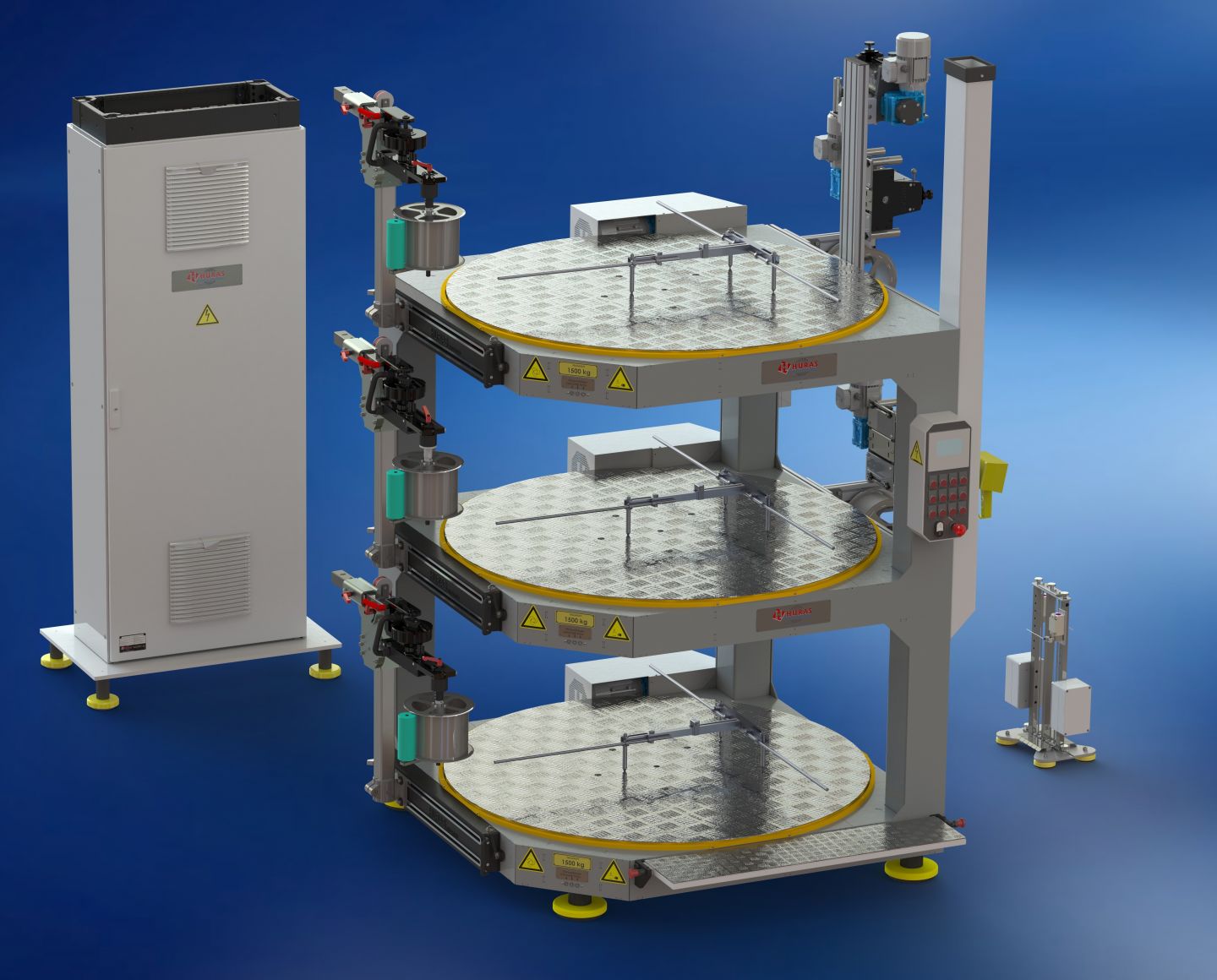

THPB
Product features
- For unwinding coils directly from the pallet
- Dancer control to protect the coils on both levels
- Coil take-off with direct drive
- For simultaneous or alternating uncoiling
- Pneumatic adjustment of the strip tension on the dancer arm
- Speed regulation via infrared / ultrasonic / opto-sensor Ideal for long feed distances
- Suitable for multicoil
Technical specification
maschine type
Table diamter
1500 mm
Table loading max.
3000 KG
-belt widht max.
200 mm
Speed max.
25 Meter pro Min
coil thickness max.
1 mm
Coil heigth max.
600 mm
OPTIONS:
- Rewinding the intermediate paper layer
- Higher or lower speed (special gears)
- Larger coil widths
- Manual coil fixing
- Motorised height adjustment of the dancer roller
- Double multi-beam light barrier with mechanical strap tension switch
- Protective device on the turntable
- OPC-UA interface (transmission control protocol)
- Protective housing with Save Limited Speed
